| General Data | |
|---|---|

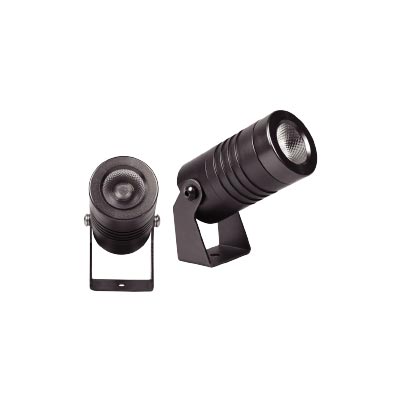

| Item No | PRL277O (RGBW)-A |
| Power | 5 Watts |
| LED Type | 1 PC 5W RGBW5500K 4in1 COB LED |
| Luminous flux | / |
| CCT | RGBW5500K |
| CRI | / |
| Beam angle | 10°, 23°, 38° |
| Dimension (mm) | 44 x 77 (mm) Diameter x Height |
| Cut out (mm) | / |
| Life Time: | 50,000 Hrs |
| Working Temp | -20 ~ +50 |
| Certifications | CE, RoHS |
| Electrical Data | |
|---|---|
| Input voltage | DC12V |
| Insulation class | Class III |
| Cable | 1PC rubber cable 1.5M H05RN-F 5x0.5mm square |
| Driver | Low voltage constant current output, excluding the transformer |
| Construction Data | |
|---|---|
| IP rating | IP67 Waterproof |
| IK rating | IK04 |
| Housing | Solid Passivated (Anodizing) Aluminum CNC machined |
| Protection Finishing | 20~25μm thickness anodized film for housing. Dark grey standard, silver color as options. |
| Trim | Passivated (Anodizing) Aluminum |
| Glass | Step tempered Glass. T=2mm. |
| Loading capacity | 220 kgs |
| Cable Gland | PG9 IP67 |
| Gasket | O-ring PMQ silicone seal |
| Accessories | |
|---|---|
| Spike | With PVC spike as spike spot lights (Standard) |
| Round base | With SS304 round base for wall mounting (optional) |
