| General Data | |
|---|---|

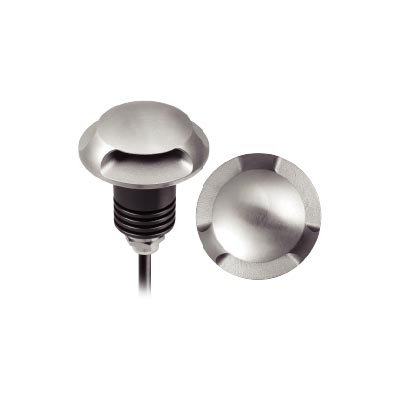

| Item No | IGD0209O |
| Power | 3 Watts |
| LED Type | 1 PC 3W CREE XPE LED |
| Luminous flux | 95~100 lm |
| CCT | 2700K, 3000K, 4000K, 6000K, R/G/Y/B |
| CRI | 80+ |
| Beam angle | 3x100° |
| Dimension (mm) | 60x75 (mm) Diameter x Height |
| Cut out (mm) | 40 mm |
| Life Time: | 50,000 Hrs |
| Working Temp | -20 ~ +50 |
| Certifications | CE, RoHS |
| Electrical Data | |
|---|---|
| Input voltage | DC12V~DC24V |
| Insulation class | Class III |
| Cable | 1PC rubber cable 1M H05RN-F 2x1mm square |
| Driver | Low voltage constant current output, excluding the transformer |
| Construction Data | |
|---|---|
| IP rating | IP67 Waterproof |
| IK rating | IK10 with cover |
| Housing | Solid Passivated (Anodizing) Aluminum CNC machined |
| Protection Finishing | 20~25μm thickness anodized film for housing. Dark grey |
| Trim | Stainless steel 316 |
| Glass | Step tempered Glass. T=4mm. |
| Loading capacity | ≤2000kgs |
| Cable Gland | PG7 IP67 |
| Gasket | O-ring PMQ silicone seal |
| Accessories | |
|---|---|
| Mounting sleeve | Passivated (Anodizing) Aluminum CNC machined.Dark grey |
