| General Data | |
|---|---|

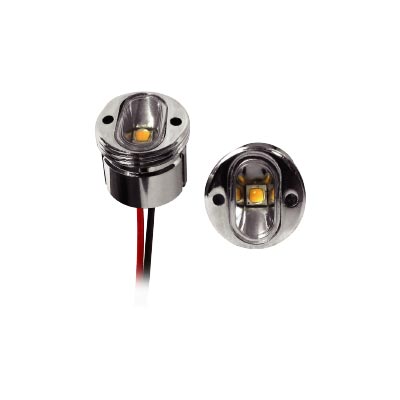

| Item No | 80°: WLR274O / 30x60°: WLR276O |
| Power | 1.5 Watts +-10% |
| LED Type | 1 PC CREE XPG LED |
| Luminous flux | 95 lm +-10%, |
| CCT | 2700K, 3000K, 4000K, 6000K |
| CRI | 80+ |
| Beam angle | 80° for DL-1016-0100-A / Asymmetrical 30x60° for DL-1016-0100-B |
| Dimension (mm) | 16 x 16 (mm) (Diameter x Height) |
| Cut out (mm) | 16mm |
| Life Time: | 50,000 Hrs |
| Working Temp | -20 ~ +50 |
| Certifications | CE, RoHS |
| Electrical Data | |
|---|---|
| Input voltage | DC3V 500mA constant currrent |
| Insulation class | Class III |
| Cable | 1PC teflon cable 0.25M 2*0.3mm square |
| Driver | without driver, need external constant current driver |
| Construction Data | |
|---|---|
| IP rating | IP67 Waterproof |
| IK rating | IK06 |
| Housing | Chrome Plated Copper CNC machined |
| Protection Finishing | Chrome Plated |
| Trim | Chrome Plated Copper CNC machined |
| Glass | / |
| Loading capacity | 110 kgs |
| Cable Gland | / |
| Gasket | / |
| Accessories | |
|---|---|
| Clip | SS304 clip for installation or taking off the xture from the handrail |
