| General Data | |
|---|---|

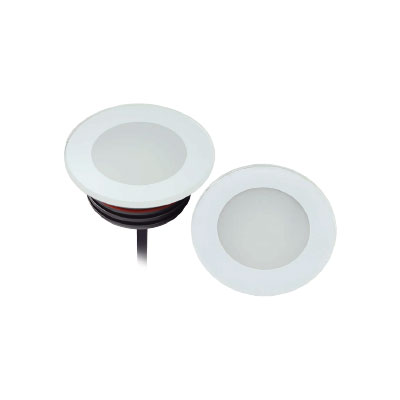

| Item No | WLR250O |
| Power | 5 Watts |
| LED Type | 15 pcs 3030 LED |
| Luminous flux | 200~220 lm |
| CCT | 2700K, 3000K, 4000K, 6000K, R/G/Y/B |
| CRI | 80+ |
| Beam angle | 120° |
| Dimension (mm) | 70 x 40 (mm) Diameter x Height |
| Cut out (mm) | 63 mm |
| Life Time: | 50,000 Hrs |
| Working Temp | -20 ~ +50 |
| Certifications | CE, RoHS |
| Electrical Data | |
|---|---|
| Input voltage | DC24V |
| Insulation class | Class III |
| Cable | 1PC rubber cable 0.3M H05RN-F 2x0.75mm square |
| Driver | Low voltage constant current output, excluding the transformer |
| Construction Data | |
|---|---|
| IP rating | IP65 Waterproof |
| IK rating | IK06 |
| Housing | Solid Passivated (Anodizing) Aluminum CNC machined |
| Protection Finishing | 20~25μm thickness anodized flm for housing. Dark grey |
| Trim | Frosted Tempered Glass. |
| Glass | Tempered Glass. T=5mm. |
| Loading capacity | 320 kgs |
| Cable Gland | PG7 IP67 |
| Gasket | O-ring PMQ silicone seal |
| Accessories | |
|---|---|
| Mounting Sleeve | Anti-corrosion PVC. Grey. |
| Clip | With strong clip as options for ceiling lights application |
