| General Data | |
|---|---|

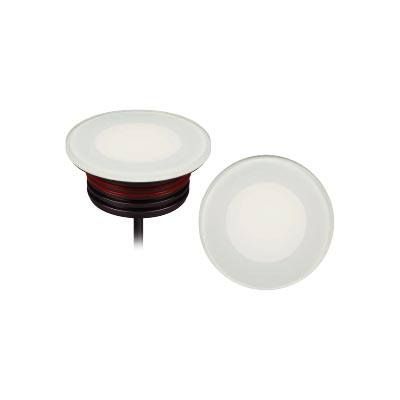

| Item No | WLR224O |
| Power | 4 Watts |
| LED Type | 18 pcs 2835 SMD LED |
| Luminous flux | 85-95 lm |
| CCT | 2700K, 3000K, 4000K, 6000K |
| CRI | 80+ |
| Beam angle | 120° |
| Dimension (mm) | 95x47 (mm) Diameter x Height (mm) Diameter x length |
| Cut out (mm) | 75 mm |
| Life Time: | 50,000 Hrs |
| Working Temp | -20 ~ +50 |
| Certifications | CE, RoHS |
| Electrical Data | |
|---|---|
| Input voltage | AC100~240V |
| Insulation class | Class I |
| Cable | 1 x cable 0.3 M H05RN-F 3x0.75mm square to open wires |
| Driver | Built-in high voltage constant current driver with transformer |
| Construction Data | |
|---|---|
| IP rating | IP65 Waterproof |
| IK rating | IK06 |
| Housing | Solid Passivated (Anodizing) Aluminum CNC machined |
| Protection Finishing | 20~25μm thickness anodized film for housing. Dark grey |
| Trim | Tempered glass painted in milky white |
| Glass | Tempered Glass. T=5mm. |
| Loading capacity | 320 kgs |
| Cable Gland | PG7 IP67 |
| Gasket | O-ring PMQ silicone seal |
| Accessories | |
|---|---|
| Mounting Sleeve | Anti-corrosion PVC. Grey. |
