| General Data | |
|---|---|

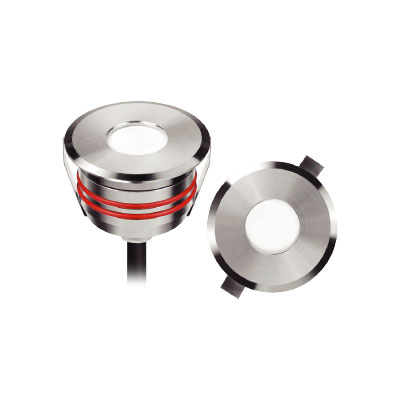

| Item No | UWL250U (Milky White) |
| Power | 1.5 Watts |
| LED Type | 1 PC CREE XPE LED |
| Luminous flux | 60~70 lm |
| CCT | 2700K, 3000K, 4000K, 6000K, R/G/B/A |
| CRI | 80+ |
| Beam angle | 120° with milky white class |
| Dimension (mm) | 45 x 36 (mm) Diameter x Height |
| Cut out (mm) | 40 mm |
| Life Time: | 50,000 Hrs |
| Working Temp | -20 ~ +50 |
| Certifications | CE, RoHS |
| Electrical Data | |
|---|---|
| Input voltage | DC12V/DC24V |
| Insulation class | Class III |
| Cable | 1PC rubber cable 1M H05RN-F 2x1mm square |
| Driver | Low voltage input, constant current output, excluding the transformer |
| Construction Data | |
|---|---|
| IP rating | IP68 Waterproof |
| IK rating | IK06 |
| Housing | Solid Passivated (Anodizing) Aluminum CNC machined as standard, (Stainless steel 316 as options) |
| Protection Finishing | 20~25μm thickness anodized film for Aluminum housing. |
| Trim | Stainless steel 316 |
| Glass | Step tempered Glass painted in milky white.T=4mm. |
| Loading capacity | 320 kgs |
| Cable Gland | PG7 IP68, Glue |
| Gasket | O-ring PMQ silicone seal |
| Accessories | |
|---|---|
| Mounting Sleeve | Anti-corrossion grey PVC mounting sleeve as optional |
| Clip | With clip as deck light or downlight |
