| General Data | |
|---|---|

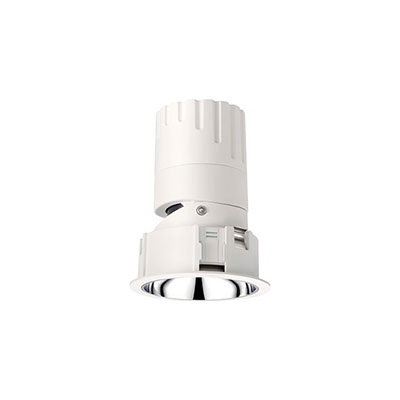

| Item No | SLRC688I |
| Power | 7 / 10 / 15 / 20 / 25 / 30 W |
| LED Type | CREE COB LED CHIP |
| Luminous flux | 120 lm/W |
| CCT | 2700K, 3000K, 4000K, 6000K |
| CRI | 80+ |
| Beam angle | 10° / 17° / 25° / 36° / 60° |
| Dimension (mm) | Ø68x100/Ø82x112/Ø104x136/Ø104x136/Ø125x155/Ø125x155 |
| Cut out (mm) | Ø60 / Ø75 / Ø95 / Ø115 |
| Life Time: | 50,000 Hrs |
| Adjustable | Yes |
| Working Temp | -20° ~ +50° |
| Surge protection | Yes |
| Electrical Data | |
|---|---|
| Input voltage | AC100~255V |
| Insulation Class | I |
| Cable | Open wires |
| Driver | Integrated high voltage driver |
| Construction Data | |
|---|---|
| IP rating | IP40 |
| Finishing | White / Black |
| Housing | Aluminum |
| Diffuser | Pc |
| Reflector Colours | Black / Sand Gold / Chrome / Matt Black |
| Accessories | |
|---|---|
| TRIMLESS frame | |
| OPTIONS | |
|---|---|
| Emergency | YES |
| Dimmable | YES |
