| General Data | |
|---|---|

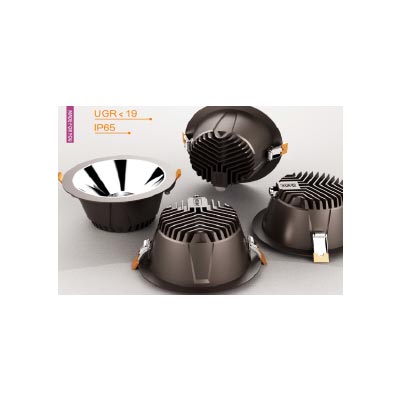

| Item No | SLRC163O |
| Power | 10 / 15 / 20 / 30 / 50 W |
| LED Type | CREE LED Chip |
| Luminous flux | 120 lm/w |
| CCT | 2700K,3000K,4000K,6000K |
| CRI | 80+ |
| Beam angle | 30° / 60° |
| Dimension (mm) | Ø110x65/Ø130x71/Ø165x82/Ø190x100 / Ø230x117 |
| Cut out (mm) | Ø95/Ø115/Ø140/Ø170/Ø200 |
| Life Time: | 50,000 Hrs |
| Adjustable | No |
| Working Temp | -20°~ +50° |
| Surge protection | Yes |
| Construction Data | |
|---|---|
| IP rating | IP65 |
| Finishing | White, Black |
| Housing | Aluminum |
| Diffuser | Lens |
| Accessories | |
|---|---|
| / | |
| OPTIONS | |
|---|---|
| Emergency | Yes |
| Dimmable | Yes |
| Electrical Data | |
|---|---|
| Input voltage | AC100~255V |
| Insulation Class | I |
| Cable | Open wires |
| Driver | External high voltage driver |
