| General Data | |
|---|---|

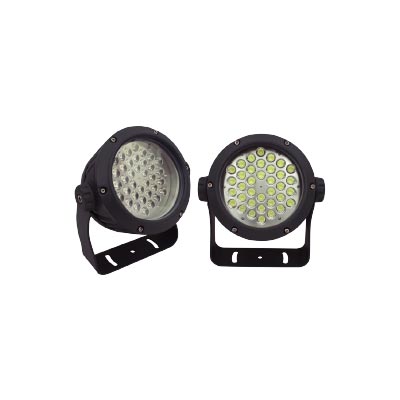

| Item No | PRL118O |
| Power | 48 watts |
| LED Type | 48 PCS OSRAM 3030 LED |
| Luminous flux | 90-100lm/W |
| CCT | 2700K, 3000K, 4000K, 6000K |
| CRI | 80+ |
| Beam angle | 15°, 25°, 30°, 45°, 60° |
| Dimension (mm) | Ø190*170 (mm) Diameter x Height |
| Cut out (mm) | / |
| Life Time: | 50,000 Hrs |
| Working Temp | -20 ~ +50 |
| Certifications | CE, RoHS |
| Electrical Data | |
|---|---|
| Input voltage | AC100~265V |
| Insulation class | Class I |
| Cable | 1PC rubber cable 0.3M H05RN-F 3*1.5mm² mm square |
| Driver | Built-in high voltage constant current driver with transformer |
| Construction Data | |
|---|---|
| IP rating | IP65 Waterproof |
| IK rating | IK04 |
| Housing | Die-casting Aluminium |
| Protection Finishing | Powder coated painted in grey |
| Trim | Powder coated painted in grey |
| Glass | Step tempered Glass. T=4mm. |
| Loading capacity | 220 kgs |
| Cable Gland | PG7 IP67 |
| Gasket | O-ring PMQ silicone seal |
| Accessories | |
|---|---|
| Spike | The spike is optional |
