| General Data | |
|---|---|

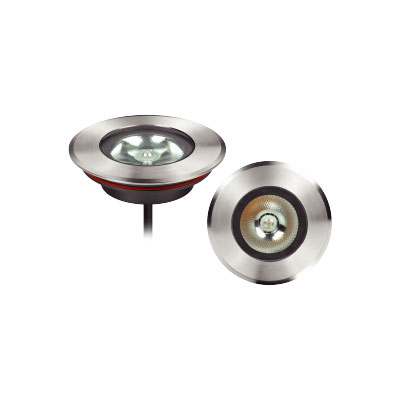

| Item No | IGD0383O |
| Power | 9 Watts |
| LED Type | 1 PC 9W CREE COB LED |
| Luminous flux | Clear glass: 435-490lm; Middle black painting glass:345-445lm |
| CCT | 2700K, 3000K, 4000K, 6000K |
| CRI | 80+ |
| Beam angle | 10°, 20°, 30° |
| Dimension (mm) | Ø130x35 (mm) Diameter x Height |
| Cut out (mm) | Inground light: Ø118 mm Deck light: Ø115 mm |
| Life Time: | 50,000 Hrs |
| Working Temp | 20 ~ +50 |
| Certifications | CE, RoHS |
| Electrical Data | |
|---|---|
| Input voltage | DC 24V |
| Insulation class | Class III |
| Cable | 1PC rubber cable 1M H05RN-F 2x1mm square |
| Driver | Built-in low voltage constant current driver without transformer |
| Control | ON\OFF / PWM |
| Construction Data | |
|---|---|
| IP rating | IP67 Waterproof |
| IK rating | IK08 |
| Housing | Solid Passivated (Anodizing) Aluminum CNC machined |
| Protection Finishing | 20~25μm thickness anodized film for housing. Dark grey color |
| Trim | Stainless steel 316 |
| Glass | Step tempered clear glass as standard T=8mm. ( middle black painting glass optional) |
| Loading capacity | 2000 kgs |
| Cable Gland | PG7 IP67 |
| Gasket | O-ring PMQ silicone seal |
| Accessories | |
|---|---|
| Mounting sleeve | Aluminium sleeve used as inground light |
| Clip | Two clips with screws optional used as downlight / deck light |
