| General Data | |
|---|---|

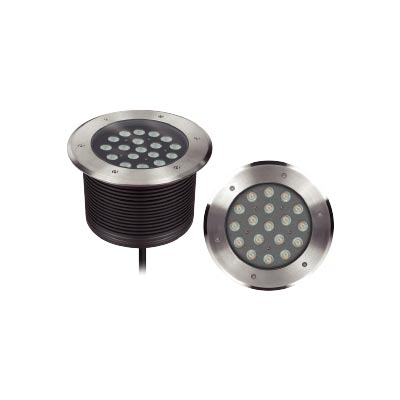

| Item No | IGD0233O |
| Power | 30 Watts |
| LED Type | 18 PCS CREE XPE LED |
| Luminous flux | 1750~1850 lm |
| CCT | 2700K, 3000K, 4000K, 6000K, R/G/Y/B |
| CRI | 80+ |
| Beam angle | Asymmetric: 15 °+15°,15 °+25°,15 °+30°,15 °+45°,15 °+60°; Symmetric: 6°, 8°,10°, 17°, 23°, 28°, 43°, 58° |
| Dimension (mm) | 200 x 105 (mm) Diameter x Height |
| Cut out (mm) | 179 mm |
| Life Time: | 50,000 Hrs |
| Working Temp | -20 ~ +50 |
| Certifications | CE, RoHS |
| Electrical Data | |
|---|---|
| Input voltage | AC95~265V |
| Insulation class | Class I |
| Cable | 1PC rubber cable 1M H05RN-F 3x1mm square |
| Driver | Built-in high voltage constant current driver with transformer |
| Construction Data | |
|---|---|
| IP rating | IP67 Waterproof |
| IK rating | IK09 |
| Housing | Solid Passivated (Anodizing) Aluminum CNC machined |
| Protection Finishing | 20~25μm thickness anodized film for housing. Dark grey color |
| Trim | Stainless steel 316 |
| Glass | Step tempered Glass. T=10mm. |
| Loading capacity | 2000 kgs |
| Cable Gland | PG7 P67 |
| Gasket | O-ring PMQ silicone seal |
| Accessories | |
|---|---|
| Mounting sleeve | Passivated (Anodizing) Aluminum CNC machined |
