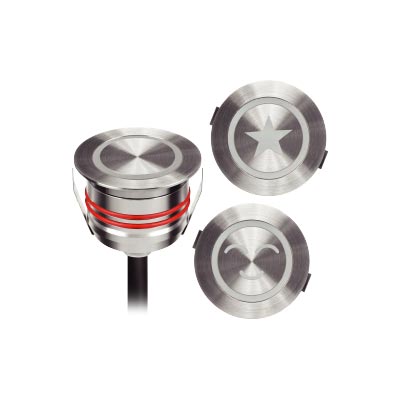

| General Data | |
|---|---|
| Item No | IGD0170O |
| Power | 2 Watts +-10% |
| LED Type | 1PC 2W OSRAM LED |
| Luminous flux | 12lm +-10% |
| CCT | 2700K, 3000K, 4000K, 6000K, R/G/Y/B |
| CRI | 80+ |
| Beam angle | 120° |
| Dimension (mm) | Ø44 x 40 (mm) Diameter x length |
| Cut out (mm) | 40 mm |
| Life Time: | 50,000 Hrs |
| Working Temp | -20 ~ +50 |
| Certifications | CE, RoHS |
| Electrical Data | |
|---|---|
| Input voltage | DC24V |
| Insulation class | Class III |
| Cable | 1PC rubber cable 1M H05RN-F 2 x1mm square |
| Driver | Low voltage input constant current output |
| Construction Data | |
|---|---|
| IP rating | IP67 Waterproof |
| IK rating | IK07 |
| Housing | Solid Passivated (Anodizing) Aluminum CNC machined |
| Protection Finishing | 20~25μm thickness anodized film for housing. silver color |
| Trim | Stainless steel 316 in white color or original 316 color The icon / logo of the trim can be customized |
| Glass | / |
| Loading capacity | 500 kgs |
| Cable Gland | PG gland |
| Gasket | O-ring PMQ silicone seal |
| Accessories | |
|---|---|
| Mounting sleeve | With mounting sleeve PVC as opions used as inground light |
| Clip | With 2 clips as deck light or ceiling light |
