| General Data | |
|---|---|

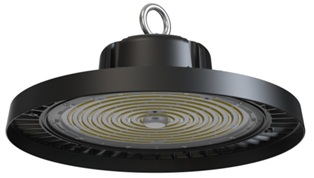

| Item No | HBL302O |
| Power | 100 / 150 / 200 / 300 / 400 / 500 W |
| LED Type | LED CHIPS |
| Luminous flux | (170 -190) lm/w |
| CCT | 2700K,3000K,4000K,5000K,6000K,6500K |
| CRI | 80+ |
| Beam angle | 60° / 90° / 120° |
| Dimension (mm) | Ø254.5x161.8/Ø299.5x176.6/Ø364.5x176.6 Ø384.5x192.6/Ø489.5x199.1/Ø489.5x199.1 |
| Cut out (mm) | / |
| Life Time: | 50,000Hrs |
| Adjustable | No |
| Working Temp | -20° ~ +50° |
| Surge protection | Yes |
| Construction Data | |
|---|---|
| IP rating | IP65 |
| Finishing | Black |
| Housing | Aluminum die cast |
| Diffuser | Clear polycarbonate lens |
| Accessories | |
|---|---|
| Bracket / Microwave sensor / Daylight sensor | |
| OPTIONS | |
|---|---|
| Emergency | Yes |
| Dimmable | Yes |
| Electrical Data | |
|---|---|
| Input voltage | AC100~255V |
| Insulation Class | I |
| Cable | Open wires |
| Driver | Integrated high voltage driver |
