| General Data | |
|---|---|

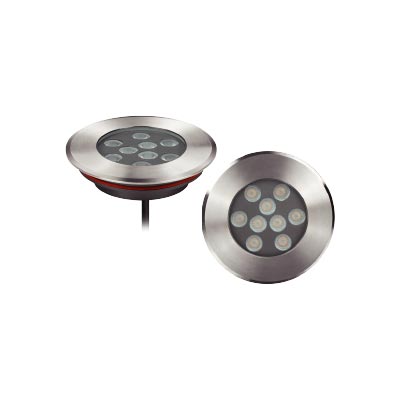

| Item No | IGD0482O (RGBW)-I |
| Power | 12 Watts +-10% |
| LED Type | 9 PCS 4in1 RGBW LED (RGB LED optional) |
| Luminous flux | / |
| CCT | RGBW (5500K or 4000K or 3000K) or RGB |
| CRI | / |
| Beam angle | 6°, 8°,10°,17°,23°,28°,43°,58 or Asymmetric15 °x15°,15 °x25°, 15 °x30°,15 °x45°,15 °x60° |
| Dimension (mm) | Ø150x35 (mm) Diameter x length |
| Cut out (mm) | Inground light: Ø118 mm Deck light: Ø115 mm |
| Life Time: | 50,000 Hrs |
| Working Temp | -20 ~ +50 |
| Certifications | CE, RoHS |
| Electrical Data | |
|---|---|
| Input voltage | DC24V |
| Insulation class | Class III |
| Cable | 1PC rubber cable 1M H05RN-F 5x0.5mm square |
| Driver | Low voltage input, constant current output, excluding the transformer |
| Construction Data | |
|---|---|
| IP rating | IP67 Waterproof |
| IK rating | IK08 |
| Housing | Solid Passivated (Anodizing) Aluminum CNC machined |
| Protection Finishing | 20~25μm thickness anodized film for housing,Dark grey |
| Trim | Stainless steel 316 |
| Glass | Step tempered Glass. T=8mm. |
| Loading capacity | 500 kgs |
| Cable Gland | PG gland |
| Gasket | O-ring PMQ silicone seal |
| Accessories | |
|---|---|
| Mounting sleeve | Aluminium sleeve used as inground light |
| Clip | Two clips with screws optional used as downlight / deck light |
