| General Data | |
|---|---|

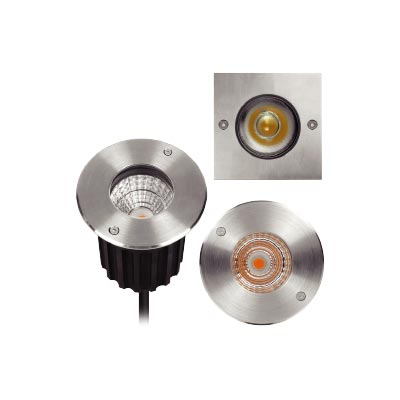

| Item No | Round trim: IGD0308O Square trim: IGD0308O-S |
| Power | 6 Watts +-10% |
| LED Type | 1 PC 6W CREE COB LED |
| Luminous flux | 470-500 lm +-10% |
| CCT | 2700K, 3000K, 4000K, 6000K |
| CRI | 80+ |
| Beam angle | COB reflector 24°, 36° as standard (Optional COB lens 10°,23°,36°) |
| Dimension (mm) | Ø65x69 (mm) Diameter x length |
| Cut out (mm) | 112 mm |
| Life Time: | 50,000 Hrs |
| Working Temp | -20 ~ +50 |
| Certifications | CE, RoHS |
| Electrical Data | |
|---|---|
| Input voltage | DC24V |
| Insulation class | Class III |
| Cable | 1PC rubber cable 1M H05RN-F 2 x1mm square |
| Driver | Low voltage constant current output, excluding the transformer |
| Construction Data | |
|---|---|
| IP rating | IP67 Waterproof |
| IK rating | IK08 |
| Housing | Solid Passivated (Anodizing) Aluminum CNC machined |
| Protection Finishing | 20~25μm thickness anodized film for housing, silver color as standard, dark grey optional |
| Trim | Round trim as standard (Square trim optional ) Stainless steel 316 |
| Glass | Step tempered Glass. T=6mm |
| Loading capacity | 500 kgs |
| Cable Gland | PG gland |
| Gasket | O-ring PMQ silicone seal |
| Accessories | |
|---|---|
| Mounting sleeve | Anti-corrosion grey PVC |
