| General Data | |
|---|---|

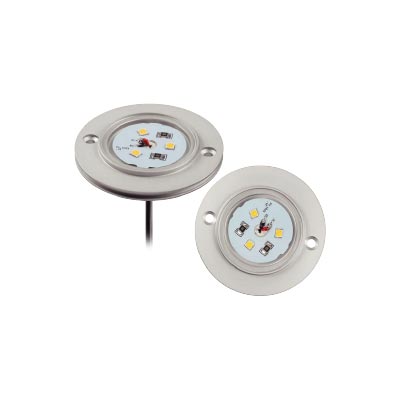

| Item No | IGD0191O/IGD0443O(RGB)/IGD0446O(RGBW) |
| Power | 3 Watts |
| LED Type | 3PCS 1W OSRAM LED /3PCS 5050RGB LED / 3PCS RGBW6000K LED |
| Luminous flux | A cover:25lm / B cover:10lm / C1 cover:10lm / C2 cover:21lm / C3 cover:22lm / C4 cover: 24lm |
| CCT | 2700K, 3000K, 4000K, 6000K, R,G,B or RGB or RGBW6000K |
| CRI | 80+ |
| Beam angle | 120° |
| Dimension (mm) | 56.3x 6 (mm) Diameter x Height |
| Cut out (mm) | / |
| Life Time: | 50,000 Hrs |
| Working Temp | -20 ~ +50 |
| Certifications | CE, RoHS |
| Electrical Data | |
|---|---|
| Input voltage | DC24V for single color, DC12V for RGB |
| Insulation class | Class III |
| Cable | 1PC cable 0.3M 2 or 4 x 0.35 mm square |
| Driver | Low voltage constant current output, excluding the transformer |
| Construction Data | |
|---|---|
| IP rating | IP67 Waterproof |
| IK rating | IK10 with cover |
| Housing | Solid Passivated (Anodizing) Aluminum CNC machined |
| Protection Finishing | 20~25μm thickness anodized film for housing |
| Trim | Six kinds of covers as options (in the next three pages) |
| Glass | Without glass,but with glue |
| Loading capacity | 320 kgs |
| Cable Gland | Aluminium part |
| Gasket | O-ring PMQ silicone seal |
| Accessories | |
|---|---|
| Mounting sleeve | Without sleeve, but with screws for easy surface mounting. |
