| General Data | |
|---|---|

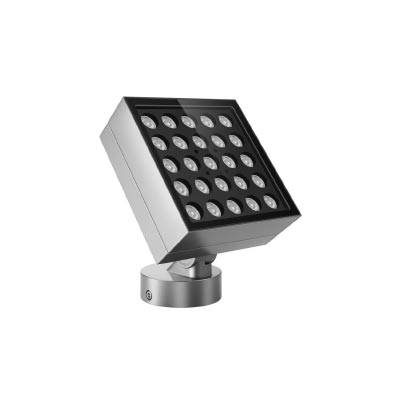

| Item No | FDL150O |
| Power | 10 / 20 / 45 / 60 / 75 / 100 / 120 / 150 W |
| LED Type | CREE LED CHIP |
| Luminous flux | 110 lm/w |
| CCT | 2700 ~ 6500K |
| CRI | 80+ |
| Beam angle | 2.5°/4.5°/8°/12°/20°/30°/45°/60°/10x70°/5x20° |
| Dimension (mm) | 85x85x52/125x125x64/172x172x69/172x172x69 220x220x74/220x220x74/270x270x79 270x270x79 |
| Cut out (mm) | / |
| Life Time: | 50,000Hrs |
| Adjustable | Yes |
| Working Temp | -20° ~ +50° |
| Surge protection | Yes |
| Construction Data | |
|---|---|
| IP rating | IP65 |
| Finishing | Grey White |
| Housing | Aluminum |
| Diffuser | Di user Tempered Glass - Lens |
| Accessories | |
|---|---|
| Bracket / Photocell / Shorting cap | |
| OPTIONS | |
|---|---|
| Emergency | Yes |
| Dimmable | / |
| Electrical Data | |
|---|---|
| Input voltage | AC100~265V |
| Insulation Class | I |
| Cable | Open wires |
| Driver | Integrated high voltage driver |
| Power Factor | PF>0.90 |
