| General Data | |
|---|---|

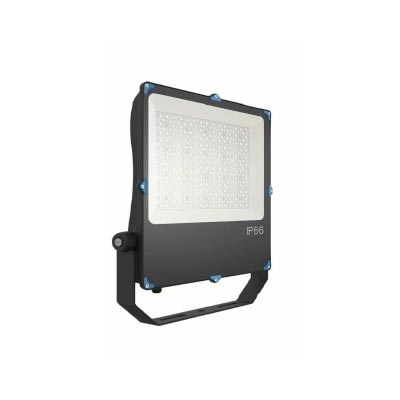

| Item No | FDL090O |
| Power | 10/20/30/50/80/100/150/200/240/300 W |
| LED Type | Lumileds 3030 |
| Luminous flux | 130 lm/w |
| CCT | 2700 ~ 6500K |
| CRI | 80+ |
| Beam angle | 30° / 60° / 90° / 120° / 30x90° |
| Dimension (mm) | 182x122x47/242x169x51/284x220x52 368x269x52/368x269x52/352x394x57 446x393x57/427x393x59/427x393x59 504x546x65 |
| Cut out (mm) | / |
| Life Time: | 50,000Hrs |
| Adjustable | No |
| Working Temp | -20° ~ +55° |
| Surge protection | Yes |
| Construction Data | |
|---|---|
| IP rating | IP66 |
| Finishing | Black |
| Housing | Die casting Aluminum housing |
| Diffuser | PMMA lens + tempered glass |
| Accessories | |
|---|---|
| Bracket / Photocell / Shorting cap | |
| OPTIONS | |
|---|---|
| Emergency | Yes |
| Dimmable | / |
| Electrical Data | |
|---|---|
| Input voltage | AC100~265V |
| Insulation Class | I |
| Cable | Open wires |
| Driver | Integrated high voltage driver |
| Power | Factor PF>0.90 |
