| General Data | |
|---|---|

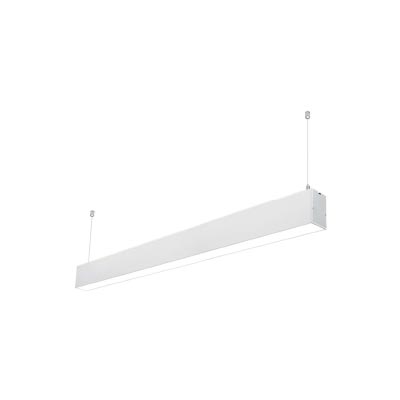

| Item No | APL146I / APL148I |
| Power | 40 / 60 W |
| LED Type | SMD LED BOARD CHIPS |
| Luminous flux | 100 lm/w |
| CCT | 2700 ~ 6000K |
| CRI | 80+ |
| Beam angle | 120° |
| Dimension (mm) | 1200x50x70 / 1800x50x70 (WxH) |
| Cut out (mm) | / |
| Life Time: | 50,000 Hrs |
| Adjustable | No |
| Working Temp | -20°~ +50° |
| Surge protection | Yes |
| Construction Data | |
|---|---|
| IP rating | IP40 |
| Finishing | White, Black, Aluminum |
| Housing | Aluminum |
| Diffuser | Opal Polycarbonate |
| Accessories | |
|---|---|
| Suspension kit | |
| OPTIONS | |
|---|---|
| Emergency | Yes |
| Dimmable | Yes |
| Electrical Data | |
|---|---|
| Input voltage | AC100~255V |
| Insulation Class | I |
| Cable | Open wires |
| Driver | Integrated high voltage driver |
