| General Data | |
|---|---|

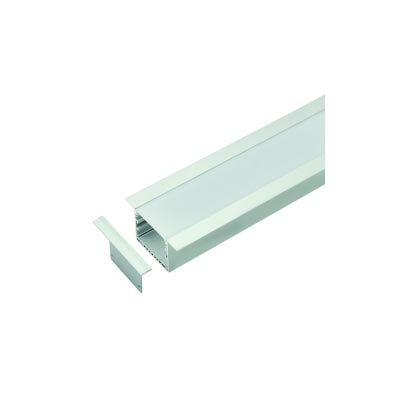

| Item No | APL130I |
| Power | 3 / 9 / 12 / 15 / 27/ 30 W |
| LED Type | EPISTAR / SAMSUNG LED CHIP |
| Luminous flux | 100 lm/w |
| CCT | 2700 ~ 6000K |
| CRI | 80+ |
| Beam angle | 120° |
| Dimension (mm) | 84x44x1000 (custom lengths available) |
| Cut out (mm) | 55 |
| Life Time: | 50,000 Hrs |
| Adjustable | No |
| Working Temp | -20°~ +50° |
| Surge protection | Yes |
| Construction Data | |
|---|---|
| IP rating | IP20 |
| Finishing | White, Black, Aluminum |
| Housing | Aluminum |
| Diffuser | Lens |
| Accessories | |
|---|---|
| Connectors / ceiling clips | |
| OPTIONS | |
|---|---|
| Emergency | Yes |
| Dimmable | Yes |
| Electrical Data | |
|---|---|
| Input voltage | DC24V |
| Insulation Class | I |
| Cable | Open wires |
| Driver | External high voltage driver |
